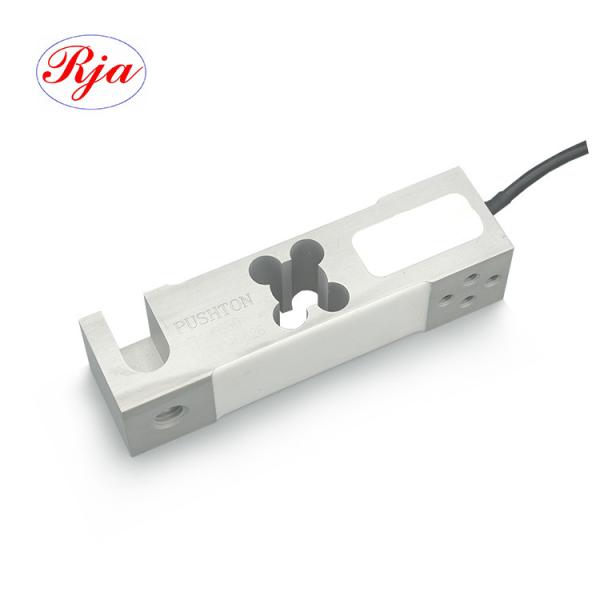

High Precision Parallel Beam Load Cell Jewelry Scales Diamond Shaped Holes M12 Threaded Hole

Name: High Precision Parallel Beam Load Cell Jewelry Scales Diamond Shaped Holes M12 Threaded Hole
Brand: ruijia
Price: 15 USD

Wholesale High Precision Parallel Beam Load Cell Jewelry Scales Diamond Shaped Holes M12 Threaded Hole from china suppliers

Brand Name : ruijia

Model Number : RJ-6540-M12

Place of Origin : China

MOQ : 1pc

Price : USD15/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 Piece/Pieces per Month

Delivery Time : 2-4 weeks

Packaging Details : Standard export packaging

Capacity : 50/100/150/200/250/350/500 kg

Sensitivity : 2.0±0.2 mV/V

Accuracy : ±0.02

Creep : ±0.02%FS(15min)

Insulation Resistance : ≥5000 MΩ（100VDC）

Output resistance : 350±5 Ω

Operating temperature : -20~+80℃

Proposed Excitation Voltage : 5～12 V

Ultimate overload : 150%FS

Cable specification : φ5

Cable length : 2m

Protection class : IP65

Contact Now

High Precision Parallel Beam Load Cell Jewelry Scales Diamond Shaped Holes M12 Threaded Hole

How to choose a load ceel?

Parallel beam load cell is one of the most commonly used load cells, widely used in electronic scales, kitchen scales, jewelry scales and other industrial fields, is an indispensable core component of industrial and agricultural automation systems, shape as a quadrilateral shape, the industry collectively known as parallel beam load cells.

Installation: first prepare two flat plates, material and size according to the need to determine. Punch a good eye according to the fixing hole of the load cell; then prepare four screws, screw caps and the following feet. Place the load cell between the two plates and fix the plate to the parallel beam load cell firmly with the hexagonal screws. The upper plate fixes one end of the load cell and the lower plate fixes the other end of the load cell. When fixing, add pre-prepared spacers between the upper and lower plates and the load cell, so that the load cell can be suspended and force measured. Finally, the spacers and other components are fixed to complete the installation of the load cell.

Technical parameters:

Capacity	Kg	50/100/150/200/250/350/500
Sensitivity	mV/V	2.0±0.2
Accuracy		±0.02
Creep(15min)	%FS	±0.02
Input Resistance	Ω	406±20
Output Resistance	Ω	350±5
Insulation Resistance	M Ω	≥5000(100VDC)
Zero Balance	%FS	±1
Temperature Effects on Span	%FS/10℃	±0.02
Temperature Effect on Zero	%FS/10℃	±0.02
Rated Temperature Range	℃	-10～+60
Operating Temperature Range	℃	-20～+80
Proposed Excitation Voltage	V	5～12
Allowed Excitation Voltage	V	18
Safe Overload	%FS	120
Ultimate Overload	%FS	150
Protection		IP65
Cable specification	mm	Ф5
Cable length	m	2
Material		Aluminum Alloy

Dimension

High Precision Parallel Beam Load Cell Jewelry Scales Diamond Shaped Holes M12 Threaded Hole

Appliaction

High Precision Parallel Beam Load Cell Jewelry Scales Diamond Shaped Holes M12 Threaded Hole

Production

High Precision Parallel Beam Load Cell Jewelry Scales Diamond Shaped Holes M12 Threaded Hole

Company Profile

Xi'an Ruijia Measurement Instrument Co.,Ltd is established in 2005, mainly engaged in the design, production, sales and technical services of force sensors and related electronic products. Our headquarters is located in Xi'an High-tech Zone, Jinye First Road, No. 81, and its branch is located in Hantai District, Hanzhong City, Shaanxi Province.
We mainly undertake high-precision load cells for aluminum and steel parts with ranges from 1kg to 50t, and pressure sensors with range from 1Mpa to 200Mpa. We have independently developed a series of electronic balance load cells, which can meet the requirements of 2kg, 3kg, 5kg. The products have been well received by many customers at home and abroad, and have been awarded the honorary title of Xi'an High-tech Enterprise. The self-developed oil well drilling, fracturing and cementing pressure sensors not only have independent and independent intellectual property rights, but also have received strong support from National Fund. The products have reached similar technical standards in Europe and the United. Our company also develops OEM products according to the special requirements of customers, and it is our aim to meet all the requirements of customers.
Through years of development, our company has its own complete set of system in technology and management. Our products are of high quality, many varieties and specifications, and strong matching. Most of our products are exported to overseas markets and have long gone to the praise and trust of our customers.
