Double Ended Shear Beam 5ton Rope Tension Load Cell For Electronic Crane Scales

1. The elastic element is a monolithic hollow section circular shaft with compact structure and simple geometric shape, which is easy to process with high dimensional and form accuracy.

2. The hollow section has a strong resistance to torsion and bending, and the stress at the neutral axis of the shaft pin is the highest.

3. When the hollow section shaft pin is subjected to vertical and horizontal bending, the section with zero bending moment is in the same section.

4. When designing a larger capacity shaft pin sensor, the central hole is also larger, and the double-shear type electro-negative strain gauge can be pasted inside the hole, i.e., well protected and the vacuum-filled inert gas sealing process can be implemented.

5. Easy to assemble with related load-bearing parts and convenient to use.

Dimension

Technical Parameter:

Application

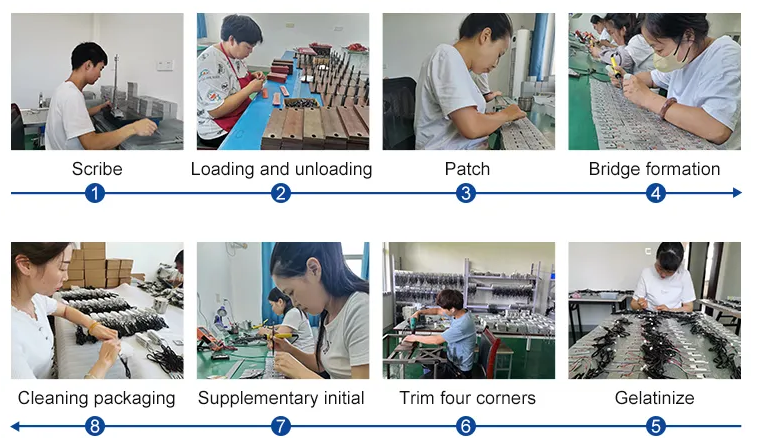

Production Process

Company Profile

Xian Ruijia Measurement Instrument Co., Ltd was founded in 2005, mainly engaged in the force sensor and related electronic products design, production and sales. With 100 employees, our company's head officce is located at No. 81, Jinye 1st Roade, Hi-tech District, Xi'an Shaanxi Province. Our branch is located in Hanzhong, Han District.

We have more than 20 years of scientific research and production experience in aluminum and steel high-precision load cells, ranging from 1kg to 50t,and pressure sensors, loader oil pressure sensors, ranging from 1Mpa to 200Mpa. In addition, our independent R&D of oil well drilling, fracturing, cementing pressure sensors also won the State Ministry of Science and Technology Innovation Fund support. The products have reached the technical standards of similar products in Europe and America.

Package & Shipment

5ton Rope Tension Load Cell

Electronic Crane Scales Tension Load Cell

Double Ended Shear Beam Load Cell
